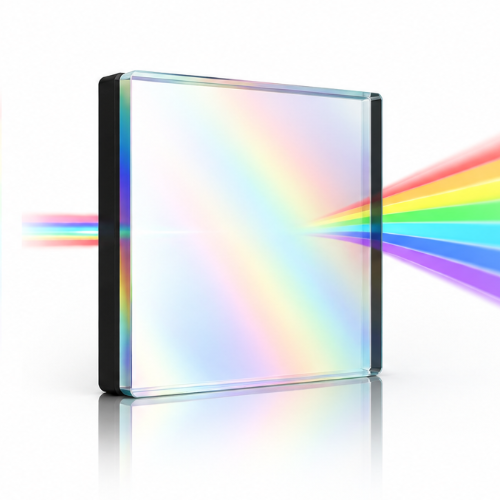

Plane transmission gratings are diffractive optical components that separate light into different wavelengths through transmission diffraction. Different wavelengths are diffracted at different angles, enabling spectral analysis.
With a compact structure and easy integration, Our plane transmission diffraction gratings are widely used in spectrometers, optical measurement systems, educational instruments and other spectroscopy applications.
NO. | Groove density (L/mm) | Grating type | Blaze wavelength λb(nm) | Blaze angle (degree) | Wavelength range (nm) | Max dimension (mm) |
1 | 50 | M | 1200 | 1.72 | 400-2400 | 68*68 |
2 | 50 | M | 5000 | 7.18 | 1800-8500 | 25*25 |
3 | 75 | M | 2000 | 4.30 | 850-4000 | 48*48 |
4 | 100 | M | 500 | 1.43 | 400-1000 | 62*62 |
5 | 100 | M | 2500 | 7.18 | 1000-5000 | 60*60 |
6 | 150 | M | 500 | 2.15 | 300-1000 | 68*68 |
7 | 150 | M | 1000 | 4.30 | 400-2000 | 50*50 |
8 | 150 | M | 2000 | 8.63 | 1000-4000 | 55*55 |
9 | 150 | M | 4000 | 17.46 | 1000-6000 | 50*50 |
10 | 150 | M | 6000 | 26.74 | 2000-10000 | 45*45 |
11 | 180 | M | 500 | 2.58 | 300-1200 | 55*55 |
12 | 200 | M | 500 | 2.87 | 300-1000 | 65*55 |
13 | 200 | M | 1000 | 5.74 | 400-2000 | 68*68 |
14 | 300 | C | - | 17.50 | 350-850 | 25*25 |
15 | 300 | M | 500 | 4.30 | 300-1000 | 70*70 |
16 | 300 | M | 800 | 6.89 | 400-1350 | 45*45 |
17 | 300 | M | 1000 | 8.63 | 400-1500 | 64*64 |
18 | 300 | M | 1200 | 10.37 | 400-2000 | 8*8 |
19 | 300 | M | 1250 | 10.81 | 400-2000 | 90*90 |
20 | 300 | M | 1500 | 13.00 | 600-2500 | 70*70 |
Note: The specifications listed above are only a selection of our standard products.
We provides various diffraction gratings with different specifications.
Please contact us for more product information and detailed specifications.
