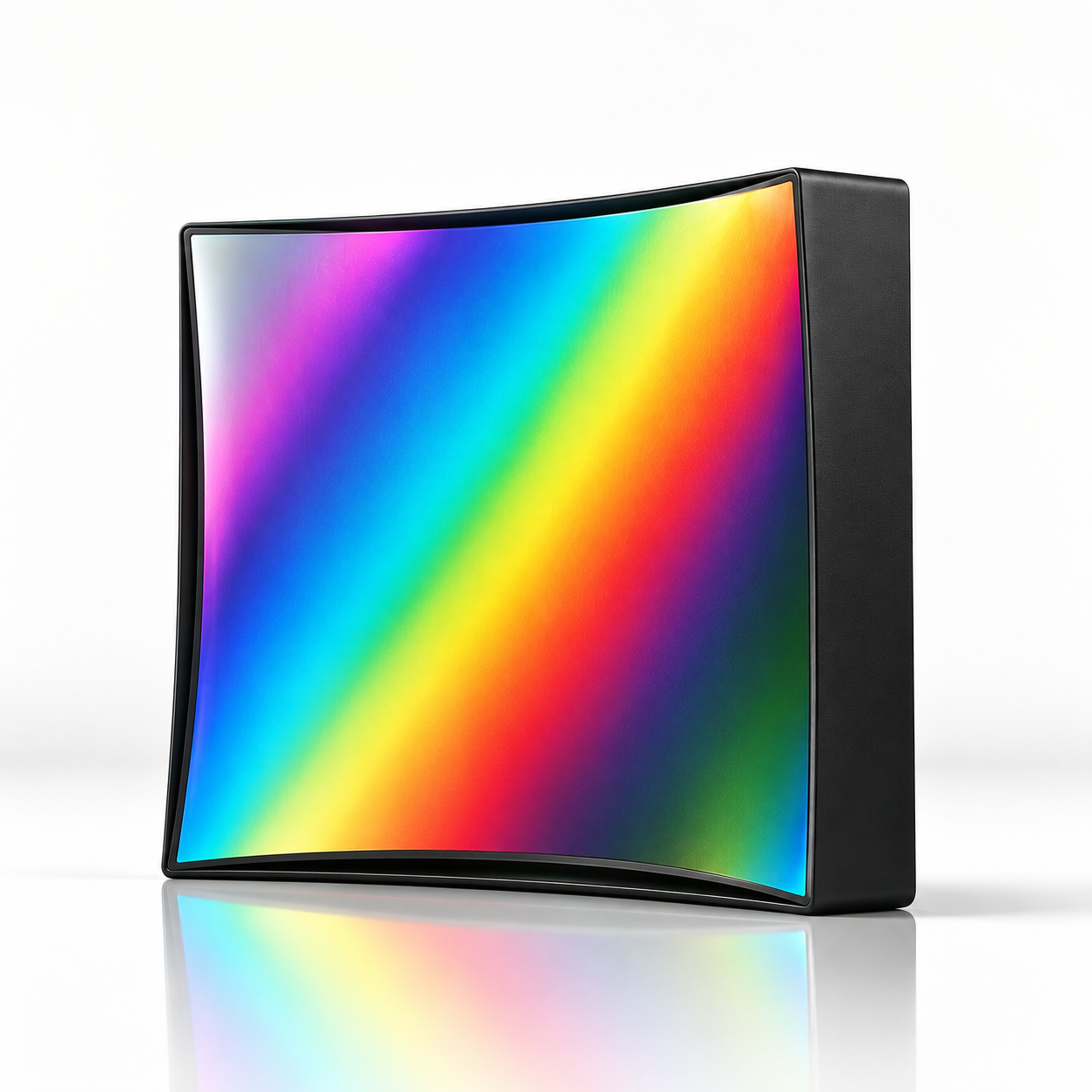

Monochromator Concave Diffraction Gratings are optical components that combine diffraction and focusing functions, effectively simplifying the optical design of monochromators and spectrometers.
With these aberration-corrected concave gratings, the spectral image of the entrance slit is projected onto the exit slit with minimal aberration. The wavelength emerging from the exit slit is selected by rotating the grating, while the angle between the incident light (input arm) and the diffracted light (output arm) remains fixed.
NO. | Groove density (L/mm) | Grating type | Blaze wavelength λB(nm) | Correction range (nm) | Blank dimensions (mm3) | Grating diameter(mm) | Concave radius (mm) |
1 | 1200 | H | 250 | 190-850 | 32*32*9 | 30*30 | 112.14 |
2 | 1200 | H | 250 | 190-850 | 32*32*10.2 | 30*30 | 112.14 |
3 | 1200 | H | 350 | 250-850 | 32*32*9 | 30*30 | 112.14 |
4 | 1200 | H | 350 | 250-850 | 32*32*10.2 | 30*30 | 112.14 |
5 | 600 | H | — | 400-1600 | 32*32*9.5 | 30*30 | 112.14 |
6 | 1200 | H | — | 190-850 | 40*45*10 | 38*43 | 226 |
7 | 1200 | H | — | 300-1000 | 40*45*10 | 38*43 | 226 |
8 | 300 | H | — | 800-3500 | 40*45*10 | 38*43 | 226 |
9 | 1000 | H | — | 190-900 | 47.5*47.5*12 | 45.5*45.5 | 203 |
10 | 1500 | H | — | 190-850 | 60*50*12 | 56*46 | 149.7 |
11 | 544 | H | — | 1000-1800 | Φ35*32.5*6.8 | Φ31*30 | 60 |
12 | 1400 | H | — | 200-750 | Φ50*10 | Φ46 | 149.7 |
13 | 1400 | H | 250 | 190-850 | 20*25*8 | 16*21 | 149.5 |
14 | — | H | — | 200-800 | 30*30*7.6 | 26*26 | 100 |
15 | 1200 | H | 330 | 200-800 | Φ50*7 | Φ46 | 111.6 |
16 | 1200 | H | 250 | 190-800 | 42.4*42.4*12 | 40*40 | 104.57 |
17 | 1300 | H | 350 | 250-650 | 64*64*8.7 | 60*60 | — |
18 | 1300 | H | 400 | 250-650 | 64*64*8.7 | 60*60 | — |
19 | 300 | H | — | 800-3200 | 32*32*9.5 | 30*30 | 112.14 |
20 | 1200 | H | 200 | 200-800 | 32*32*10.2 | 30*30 | 112.2 |
The table above lists the main specifications of our standard models.
For complete technical data or specific requirements, please contact Kaemi Opto-instrument.
