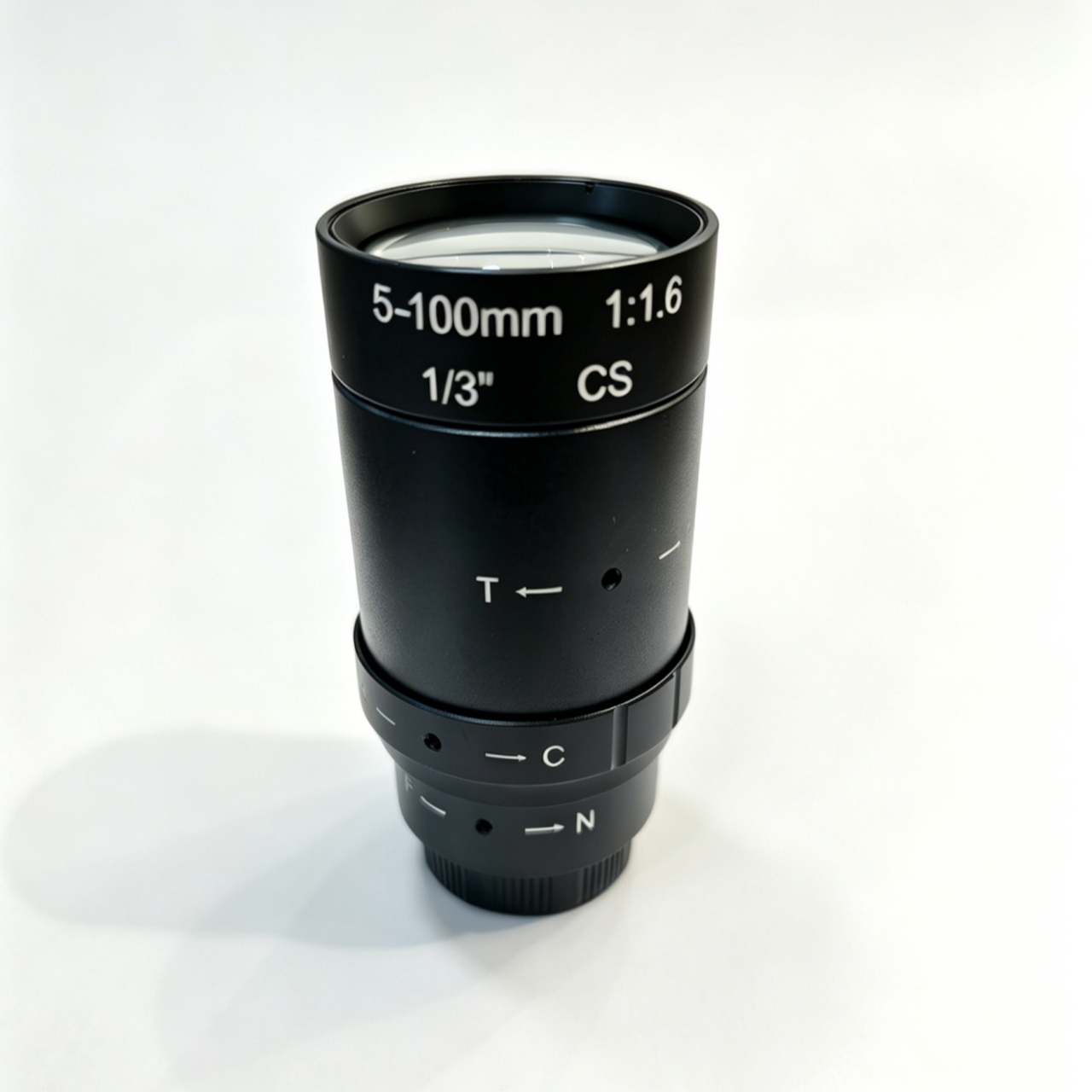

Zoom Lens-KM10016-1.3M

High-performance zoom lenses featuring continuous zoom capability, high resolution, and stable imaging performance. Flexible for different fields of view and working distances, delivering clear imaging from near to distant targets.
Widely used in industrial inspection, automation equipment, security surveillance, scientific observation, and machine vision applications. Manual zoom, focus, and iris control.

Specification
Article Number	KM10016-1.3M
Resolution	1.3MP
FL (mm)	5-100
F#	F1.6
Working Distance	0.5-∞ m
FOV	Wide:78.3°×66.2°×52.0° Tele:33.5°×27.1°×20.5°
Sensor Size	1/3” (6 mm)
Filter Thread(mm)	M37.5×0.5
Distortion	≥10%
Aperture Control	Manual
Lens Mount	CS-Mount

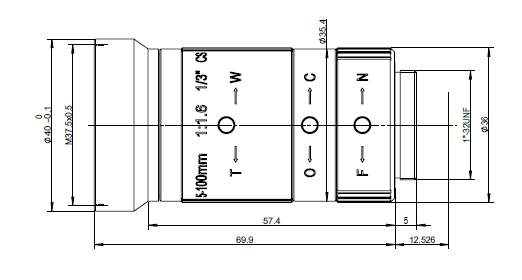

Dimensions(mm)	Φ40×73
