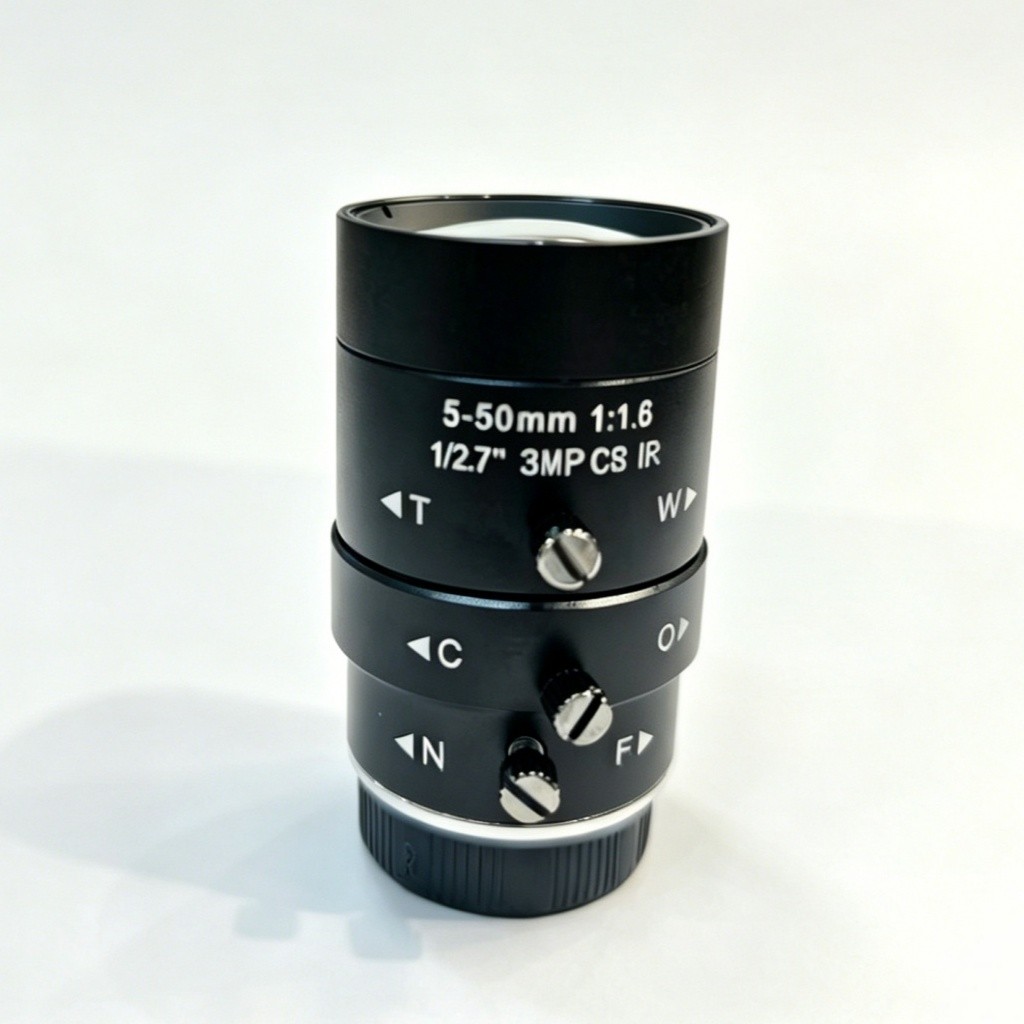

Zoom Lens-KM5016-3MV1

High-performance zoom lenses featuring continuous zoom capability, high resolution, and stable imaging performance. Flexible for different fields of view and working distances, delivering clear imaging from near to distant targets.
Widely used in industrial inspection, automation equipment, security surveillance, scientific observation, and machine vision applications. Manual zoom, focus, and iris control.

Specification
Article Number	KM5016-3MV1
Resolution	3 MP
FL(mm)	5-50
F#	F1.6
Working Distance	1.5 m
FOV(D×H×V)	Wide:59.6°×51.7°×29° Tele:8.5°×7.4°×4.24°
Sensor Size	1/2.7” (Φ6.7 mm)
Lens Mount	CS-Mount
Filter Thread(mm)	N/A
Distortion	Wide: -10%, Tele: +2.5% (Φ6.7 mm)
Aperture Control	Manual

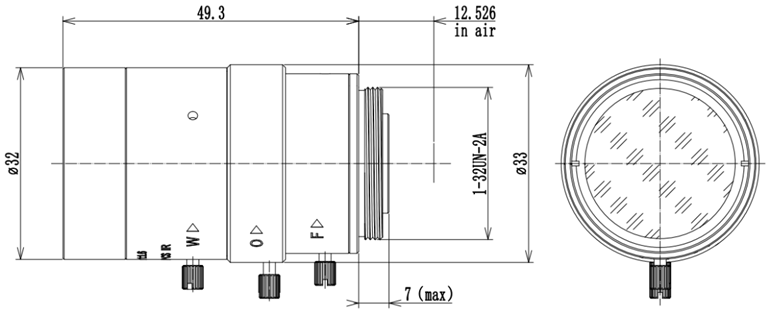

Dimensions(mm)	Φ33×56.3
