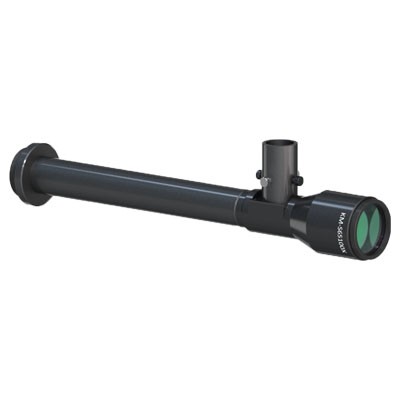

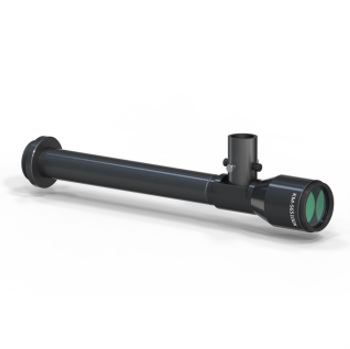

Telecentric Lenses-KM-S65100X

A telecentric lens is a specialized optical lens that maintains a constant image magnification within a certain object distance range, regardless of the object's distance from the lens.
It possesses distinctive optical characteristics: high resolution, super-wide depth of field, ultra-low distortion, and a unique parallel optical path design.

Product Specifications
Item No	KM-S65100X
Magnification	10X
Format	2/3’’
Depth of Field	0.15 mm
Object field of view	Φ1.1 mm
Image field of view	Φ 11 mm
MTF	>0.3@25 lp/mm
Working distance	65 mm
NA	0.15
Resolution	1 µm
Distortion	<0.02%

Drawings

Article Number	Magnification	Sensor size	DOF (mm)	Object Field of View (mm)	Image Field of View (mm)	MTF	W.D(mm)	NA	Resolution	Distortion
KM-S11005X	0.5X	2/3”	3.2	Ф35.6	Ф17.8	>0.3@120lp/mm	110±3	0.033	7µm	<0.02%
KM-S11010X	1X	2/3”	1	Ф17.8	Ф17.8	>0.3@150lp/mm	110±3	0.083	4µm	<0.02%
KM-S11020X	2X	2/3”	0.3	Ф8.9	Ф17.8	>0.3@80lp/mm	110±3	0.1	2.5µm	<0.02%
KM-S65100X	10X	2/3”	0.15	Ф1.1	Ф11	>0.3@25lp/mm	65	0.15	1µm	<0.02%
