A fisheye lens is an extreme wide-angle lens characterized by two primary features: short focal length (16mm or shorter) and a large field of view (180 to 270 degrees).
With its exceptionally wide field of view, a single frame captured by a fisheye lens contains remarkably rich information. Therefore, it operates in a stare-down mode without requiring rotation or scanning. Combined with its compact size and high concealment, the fisheye lens delivers unique application value across diverse fields.

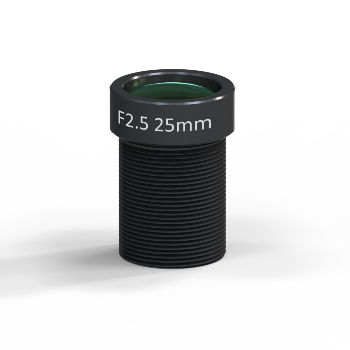

Product Specifications | |
Article number | GM2525-M12 |
FL | 25 mm |
F/# | 2.5 |
Image Circle | 8 mm(1/2”) |
BFL | 8.49 mm |
Total Length | 28 mm |
WD | 0.3~∞ |
Resolution | 5MP |
FOV | 18°×15°×11° |
Distortion | 0.5% |
CRA | 12° |
RI | 85% |
Dimensions | Φ16 x 28mm |
Mounting thread | M12*0.5 |
Temperature | -20~+70℃ |
IR Cut Filter | Available upon request |

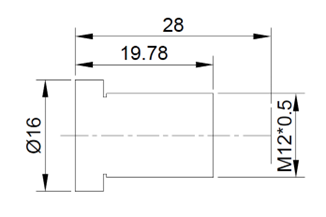

Drawings
