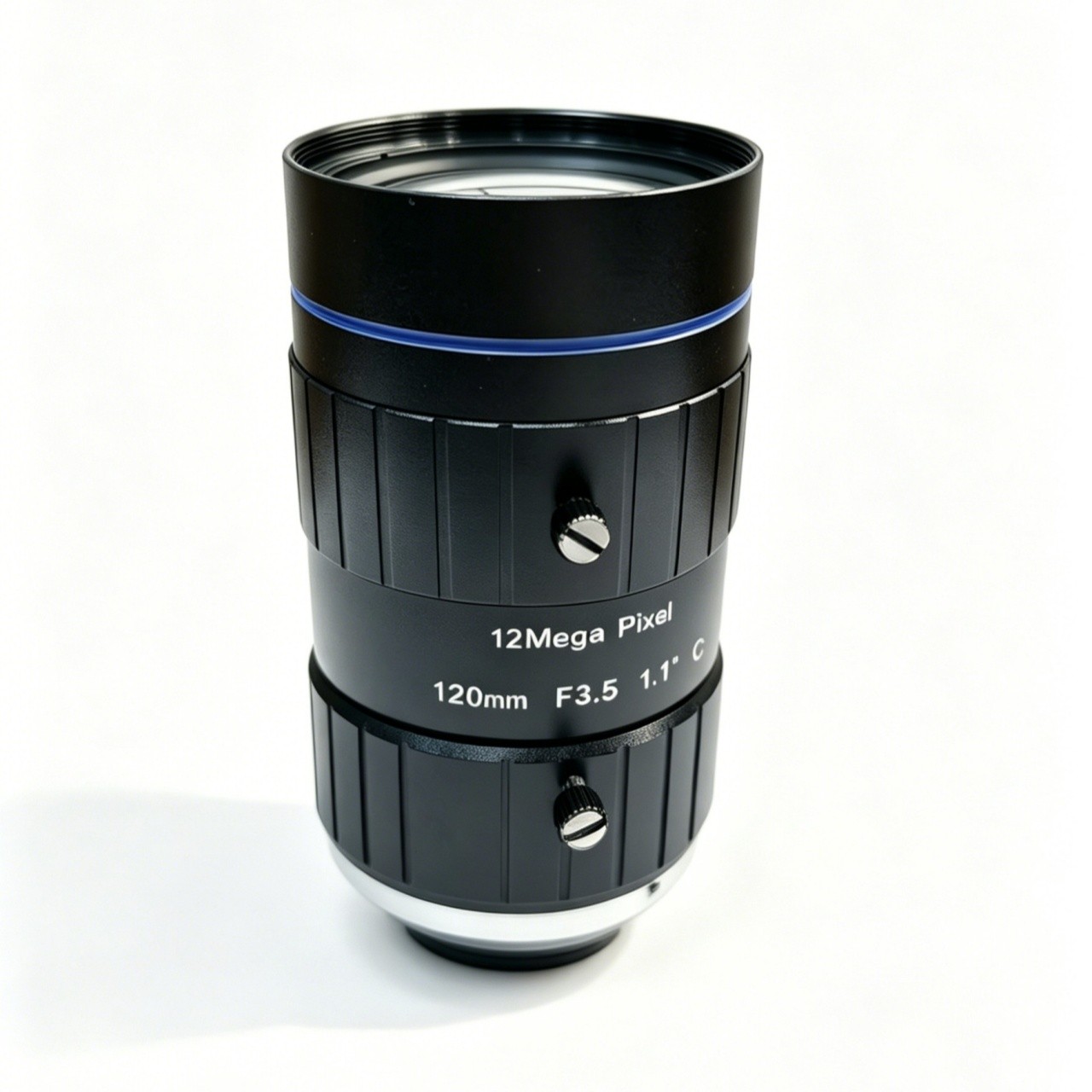

Fixed Focal Length Lens-KM12035-12M

High-performance fixed focal length lenses featuring high resolution, low distortion, and excellent edge sharpness. Support large-format sensors and high-pixel imaging for demanding vision inspection applications.
Widely used in electronics manufacturing, semiconductor inspection, automation equipment, and R&D applications. Manual focus and iris control.

Specification
Article Number	KM12035-12M
Resolution	12MP
FL (mm)	120
F#	F3.5
Working Distance	2m
FOV(D×H×V)	8.45°×6.88°×4.95°
Sensor Size	1.1” (Φ18 mm MAX)
Lens Mount	C-mount
Filter Thread	M 40.5× 0.5
Distortion	<0.6%
Aperture Control	Maunal

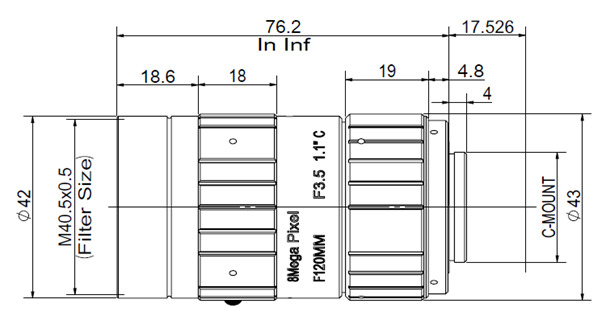

Dimensions(mm)	Φ43×(76.2~85)
