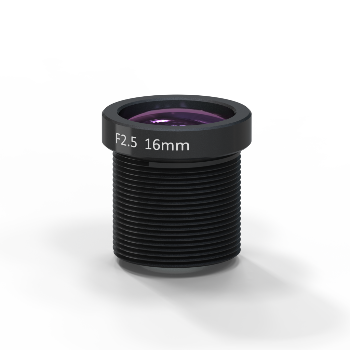

M12 Board Lens GM1625

A fisheye lens is an extreme wide-angle lens characterized by two primary features: short focal length (16mm or shorter) and a large field of view (180 to 270 degrees).
With its exceptionally wide field of view, a single frame captured by a fisheye lens contains remarkably rich information. Therefore, it operates in a stare-down mode without requiring rotation or scanning. Combined with its compact size and high concealment, the fisheye lens delivers unique application value across diverse fields.

Product Specifications

Article number

GM1625-M12

FL

16 mm

F/#

2.5

Image Circle

8 mm (1/2")

BFL

7.29 mm

Total Length

20.9 mm

WD

0.1~ ∞

Resolution

5 MP

FOV

28° × 23° × 17°

Distortion

< 0.1%

CRA

17°

RI

> 85%

Dimensions

Φ12x20.9 mm

Mounting Thread

M12 x 0.5

Temperature

-20~+70 °C

IR Cut Filter

Available upon request

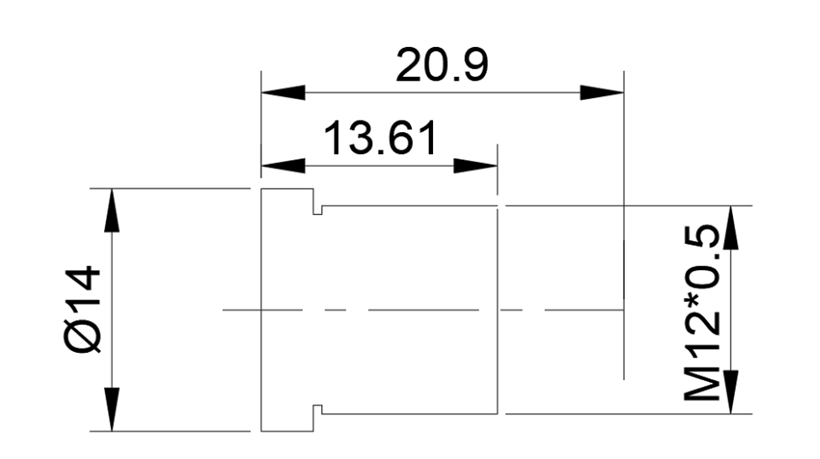

Drawings
