M12 Board Lens GM2025

A fisheye lens is an extreme wide-angle lens characterized by two primary features: short focal length (16mm or shorter) and a large field of view (180 to 270 degrees).
With its exceptionally wide field of view, a single frame captured by a fisheye lens contains remarkably rich information. Therefore, it operates in a stare-down mode without requiring rotation or scanning. Combined with its compact size and high concealment, the fisheye lens delivers unique application value across diverse fields.


Product Specifications

Article number

GM2025-M12

FL

20 mm

F/#

2.5

Image Circle

8 mm(1/2”)

BFL

7.1 mm

Total Length

23 mm

WD

0.2~∞

Resolution

5MP

FOV

23°×18°×14°

Distortion

0.1%

CRA

17°

RI

85%

Dimensions

Φ14 x 23mm

Mounting thread

M12*0.5

Temperature

-20~+70

IR Cut Filter

Available   upon request

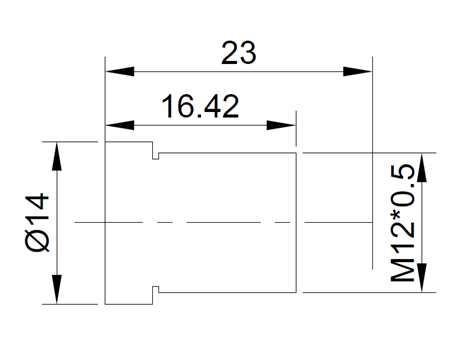

Drawings
