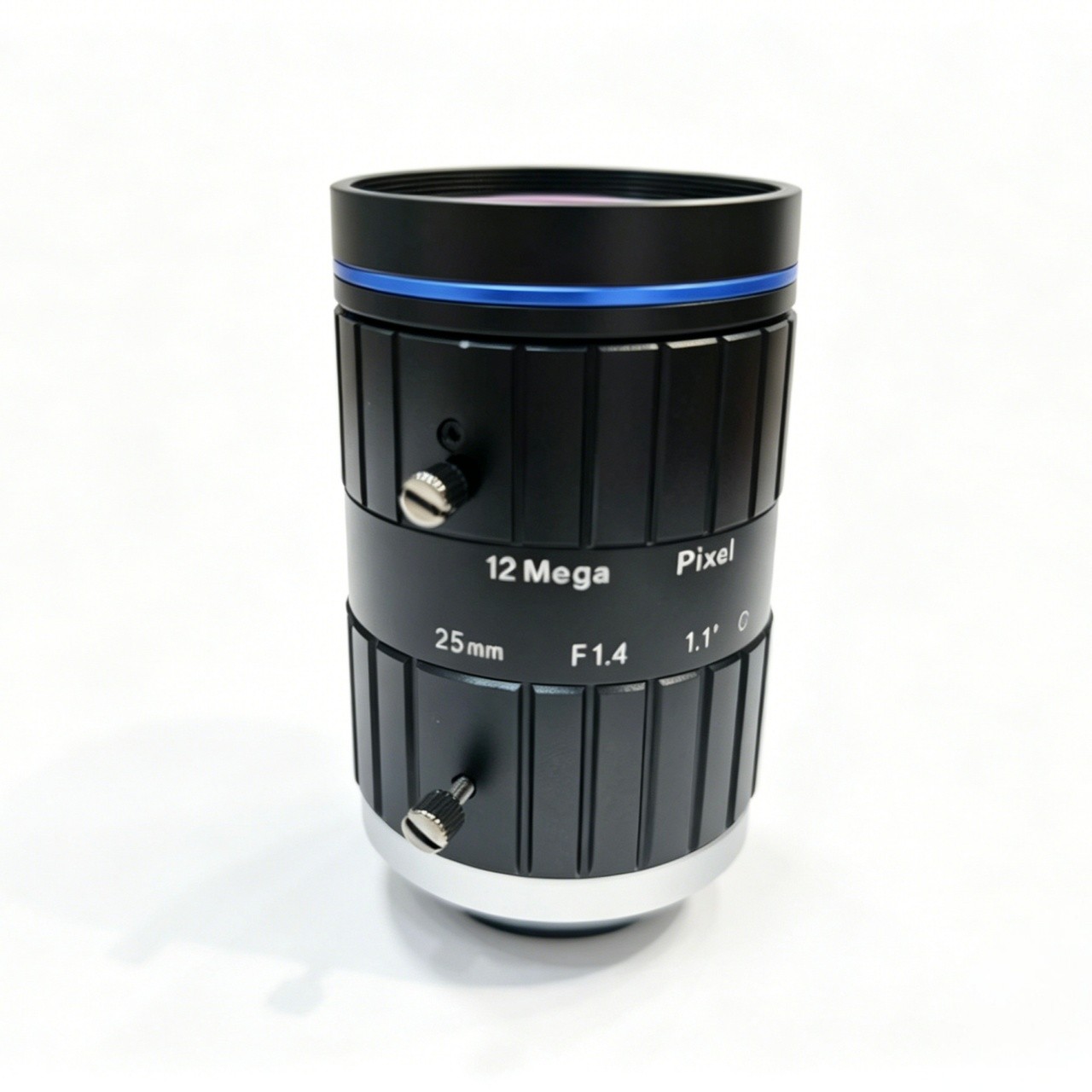

Fixed Focal Length Lens-KM2514-12M

High-performance fixed focal length lenses featuring high resolution, low distortion, and excellent edge sharpness. Compatible with large-format sensors and high-resolution imaging
for demanding vision inspection applications.
Widely used in electronics manufacturing, semiconductor inspection, automation equipment, and R&D applications. Manual focus and iris control.

Specification
Article Number	KM2514-12M
Resolution	12MP
FL (mm)	25
F#	F1.4
Working Distance	1m
FOV(D×H×V)	40.2°×33.1°×23.8°
Sensor Size	1.1” (Φ18 mm MAX)
Lens Mount	C-mount
Filter Thread(mm)	M 40.5× 0.5
Distortion	-3.7%
Aperture Control	Maunal

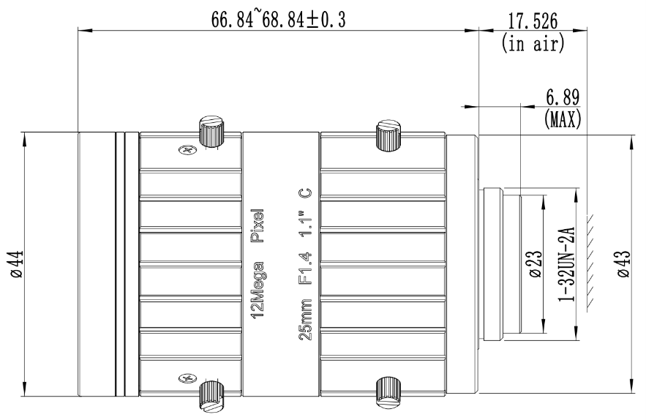

Dimensions(mm)	Φ44× 68.8
