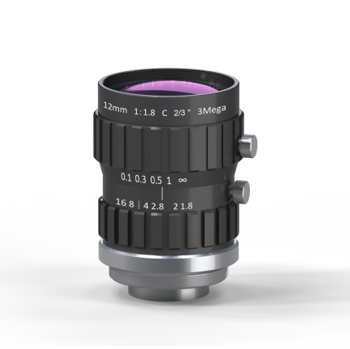

Fixed Focal Length Lens-KM1218-3M

High-performance fixed focal length lenses featuring high resolution, low distortion, and excellent edge sharpness. Compatible with large-format sensors and high-resolution imaging
for demanding vision inspection applications.
Widely used in electronics manufacturing, semiconductor inspection, automation equipment, and R&D applications. Manual focus and iris control.

Specification
Article Number	KM1218-3M
Resolution	3MP
FL(mm)	12
F#	F1.8-16
Work Distance(mm)	0.1~∞
FOV	42.48°×36.24°×28.81°
Sensor Size	2/3’’
Lens Mount	C-mount
Filter Thread	M 27 ×0.5
Distortion	<-0.2%
Aperture Control	Maunal

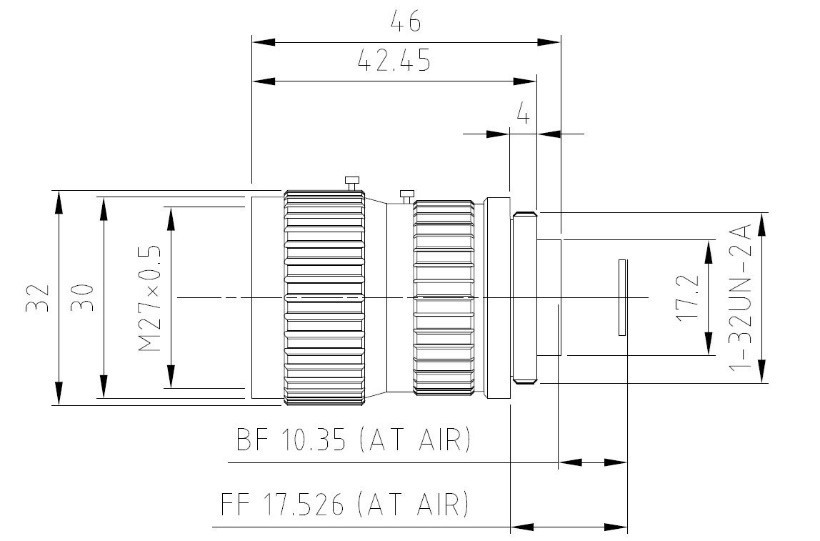

Dimensions(mm)	Φ32 ×46
