Fixed Focal Length Lens-KM2518-3M

High-performance fixed focal length lenses featuring high resolution, low distortion, and excellent edge sharpness. Compatible with large-format sensors and high-resolution imaging
for demanding vision inspection applications.
Widely used in electronics manufacturing, semiconductor inspection, automation equipment, and R&D applications. Manual focus and iris control.

Specification
Article Number	KM2518-3M
Resolution	3MP
FL (mm)	25
F#	F1.8-16
Working Distance(mm)	0.1~∞
FOV(D× H× V)	23.74°× 19.95°× 15.05°
Sensor Size	2/3’’
Lens Mount	C mount
Filter Thread	M 25.5 × 0.5
Distortion	<-0.05%
Aperture Control	Maunal

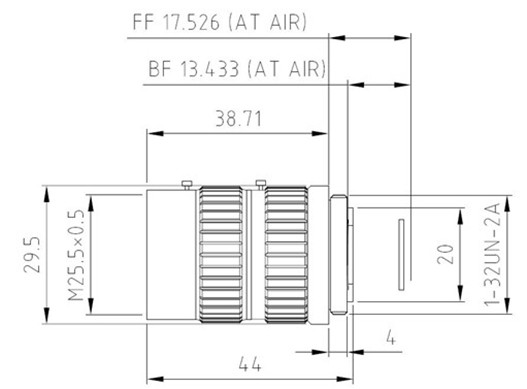

Dimensions(mm)	Φ29.5× 44
